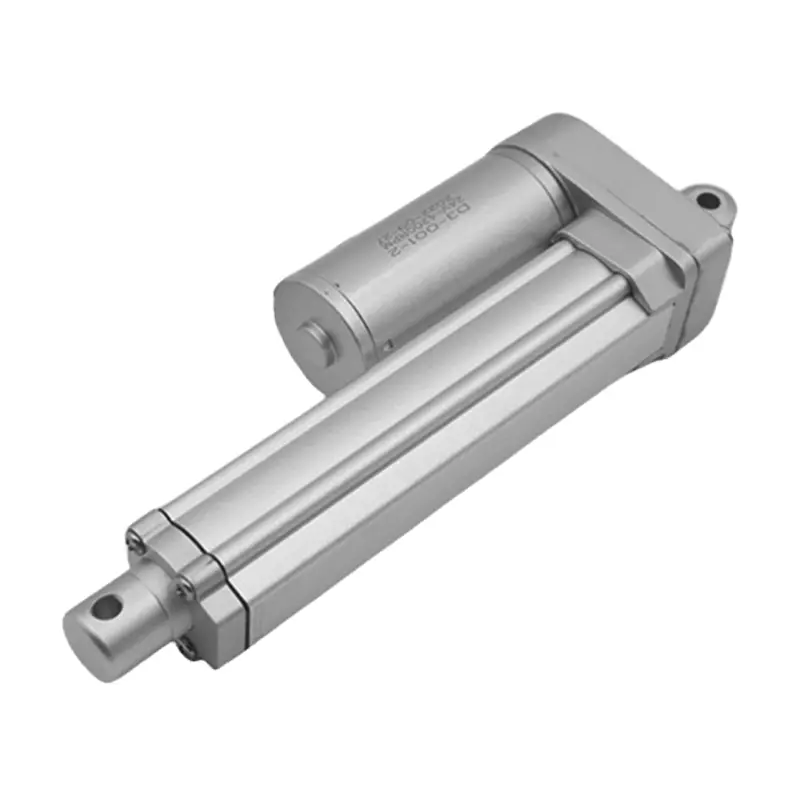

GRA-D3
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v/36v/48v
Max load: 1200N
Max speed at no load: 80.0mm/s
Max stroke: 1000MM
IP rate: IP65
Option: Hall sensor, Potentiometer, Limit switch signal output
Product Details

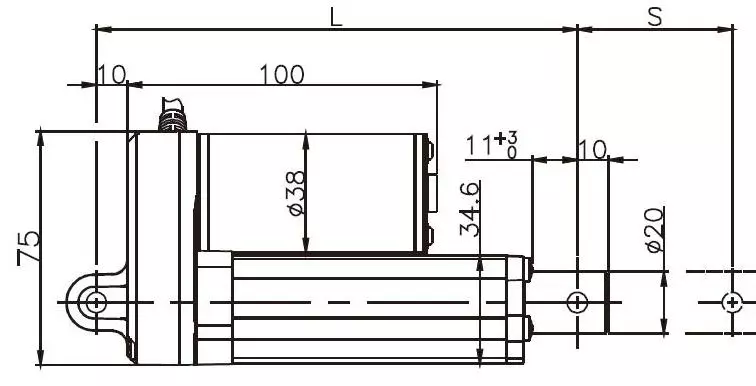

Standard Unit (Supports Hall Signal/Limit Switch)：
| Itinerary (S) |
30-300
|
301-500
|
501-600
|
| Minimum Installation Distance (L) |
S+105
|
S+120
|
S+130
|

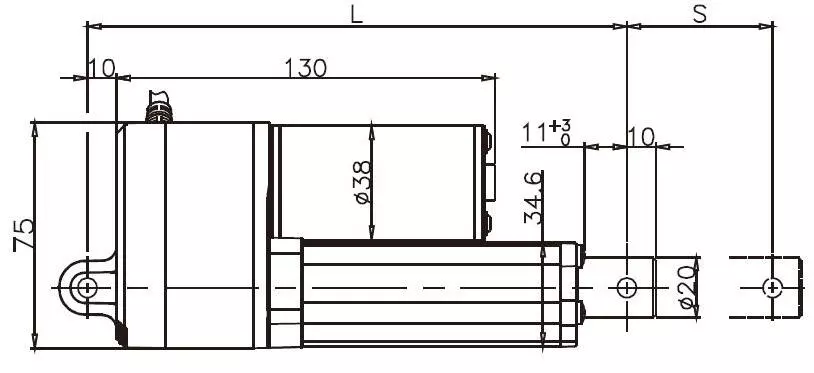

Supports potentiometers/limit switches：
| Itinerary (S) |
30-300
|
301-500
|
501-600
|
| Minimum Size (L) | S+135 |
S+150
|
S+160
|
Relevant Parameters
| Voltage | Gear ratio | Rated load | Static load | Speed (MM/S) |
Itinerary | Ambient temperature |
Work schedule |
Waterproof Rating |
|
| No load | fully loaded | ||||||||
| DC 12V 24V 36V 48V |
5:1 | 50N | 2300N | 80 | 65 | 30-600 mm | -25℃ to +65℃ | 25% | IP65 |
| 100N | 60 | 45 | |||||||
| 10:1 | 200N | 40 | 24 | ||||||
| 250N | 25 | 20 | |||||||
| 20:1 | 500N | 16.5 | 12 | ||||||
| 600N | 10.5 | 7 | |||||||
| 30:1 | 700N | 11.5 | 8.5 | ||||||
| 800N | 8.5 | 6.5 | |||||||
| 40:1 | 1000N | 7.2 | 6.5 | ||||||
| 1200N | 5.5 | 4 | |||||||
Products Description
