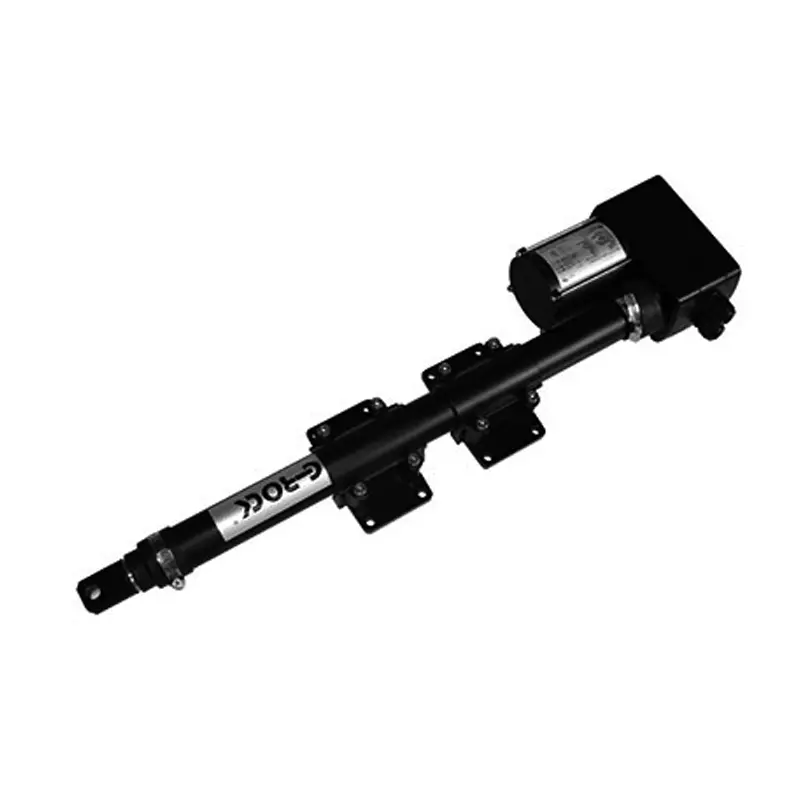

GRA-D10
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 24v/36v/115v/220v
Max load: 6000N
Max speed at no load: 5.0mm/s
Max stroke: 1200MM
IP rate: IP66

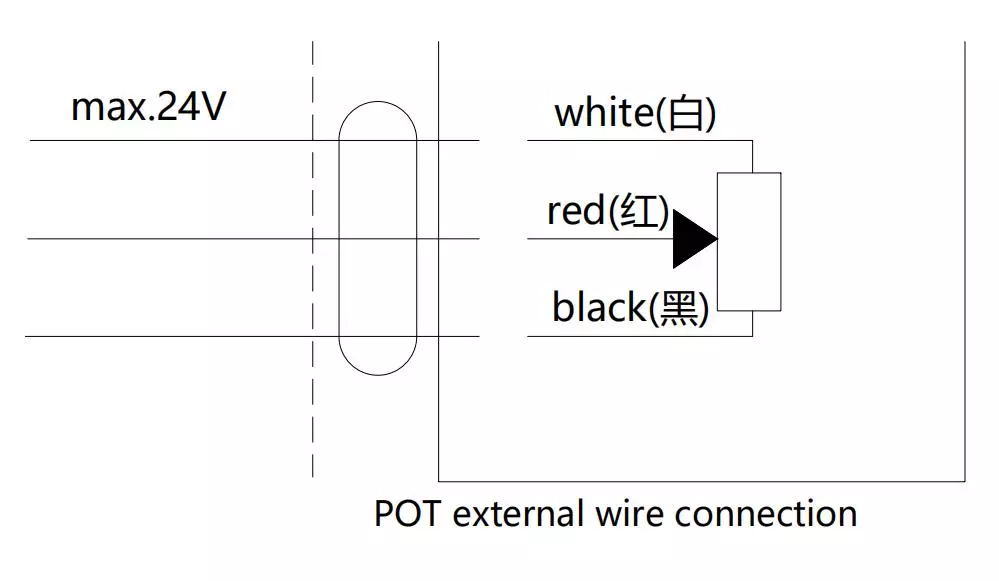

Option: 10K Potentiometer, Limit switch signal output, Switch signal output, Power off hand crank
Product Details
| Itinerary （S） |
450MM
|
600MM
|
900MM
|
1200MM
|

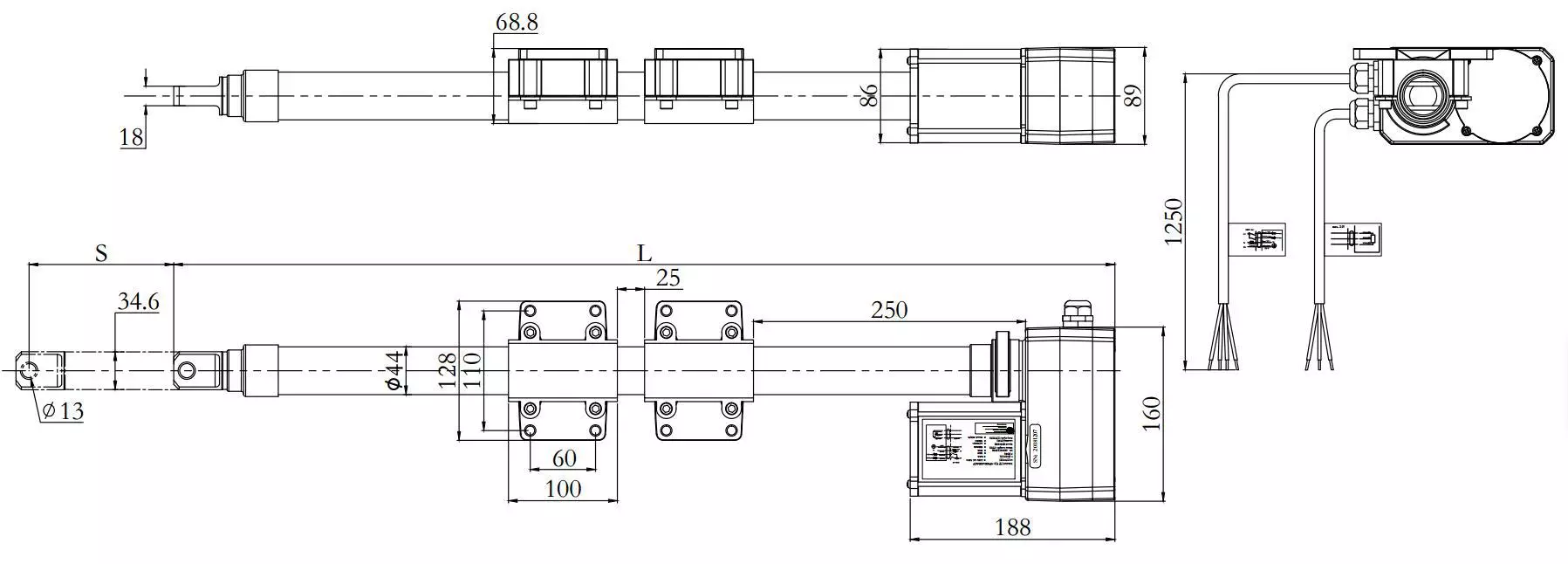

| Dimensions (L) |
730MM
|
880MM
|
1180MM
|
1480MM
|
Products Description
| Voltage(v) | Current(A) | Power(w) | Speed(MM/S) | Maximum load | Ammeter |
| 120V-60HZ | 1.4 A | 168 W | 4.5 MM/S | 5000N | 10K |
| 220V-50HZ | 0.8 A | 168 W | 4.2 MM/S | 5000N | 10K |
| 24V | 6.0 A | 144 W | 6.0 MM/S | 5000N | 10K |
| 36V | 4.2 A | 151 W | 6.8 MM/S | 5000N | 10K |
Products Description
Products Description
| Itinerary | Pieces/Box | Gross Weight/Box | Dimensions (L*W*H) |
20FT | 40FT |
| 18Inch/450MM | 1 | 9.2KG | 79*24*14CM | 1000pcs | 2230pcs |
| 24inch/600MM | 1 | 10.2KG | 95*24*14CM | 865pcs | 1880pcs |
| 36Inch/900MM | 1 | 12.2KG | 125*24*14CM | 620pcs | 1380pcs |
| 48Inch/1200MM | 1 | 15.2KG | 155*24*14CM | 500pcs | 1115pCS |
Installation

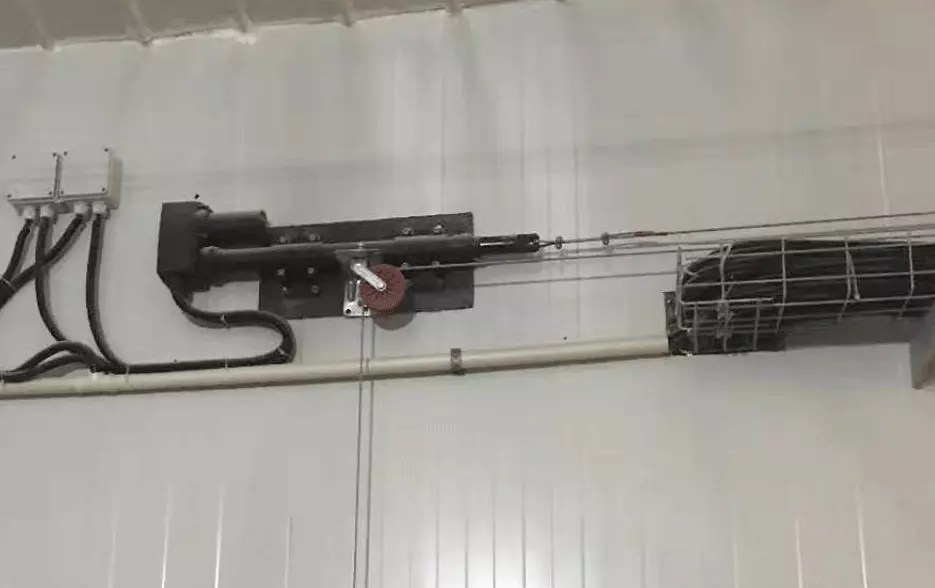

Directly pull the steel wire

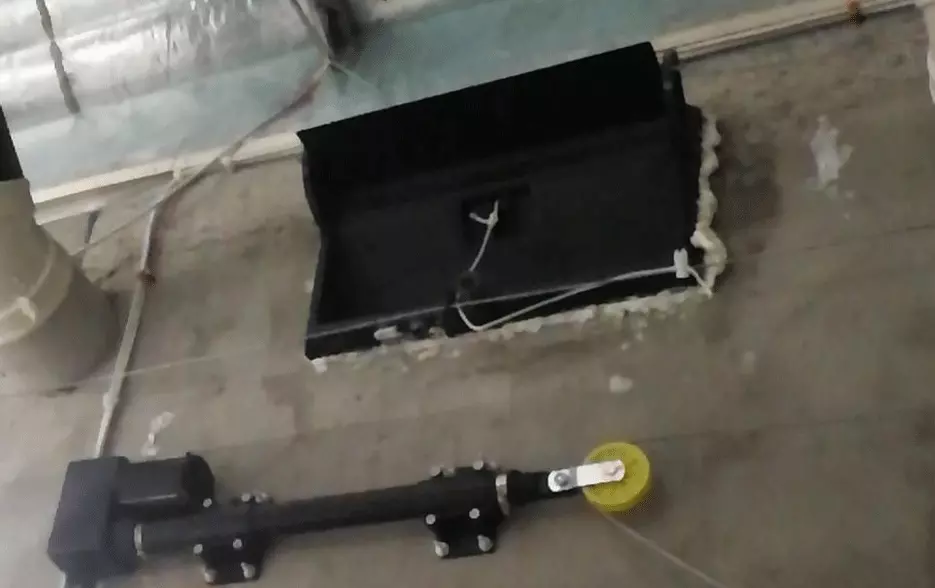

Install fixed pulleys

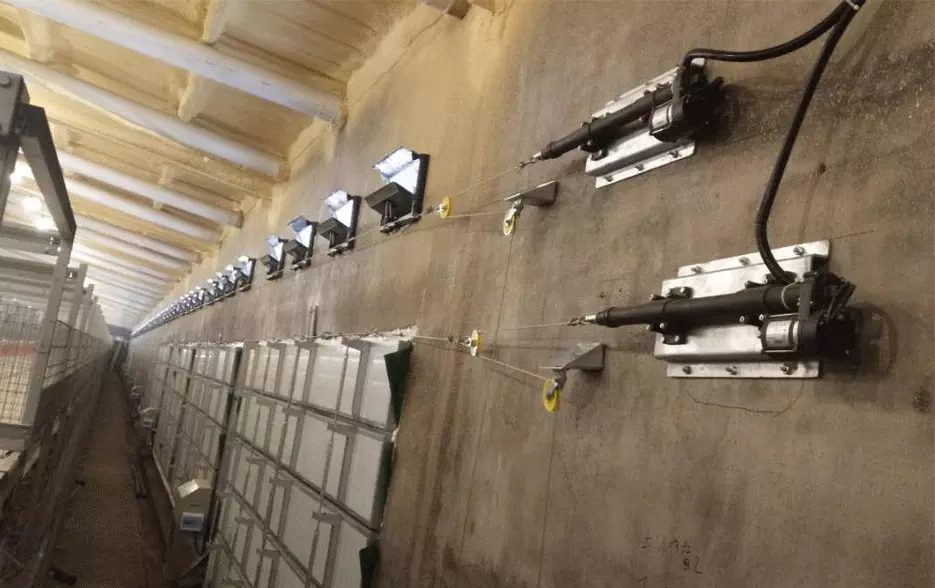

Install movable pulleys
