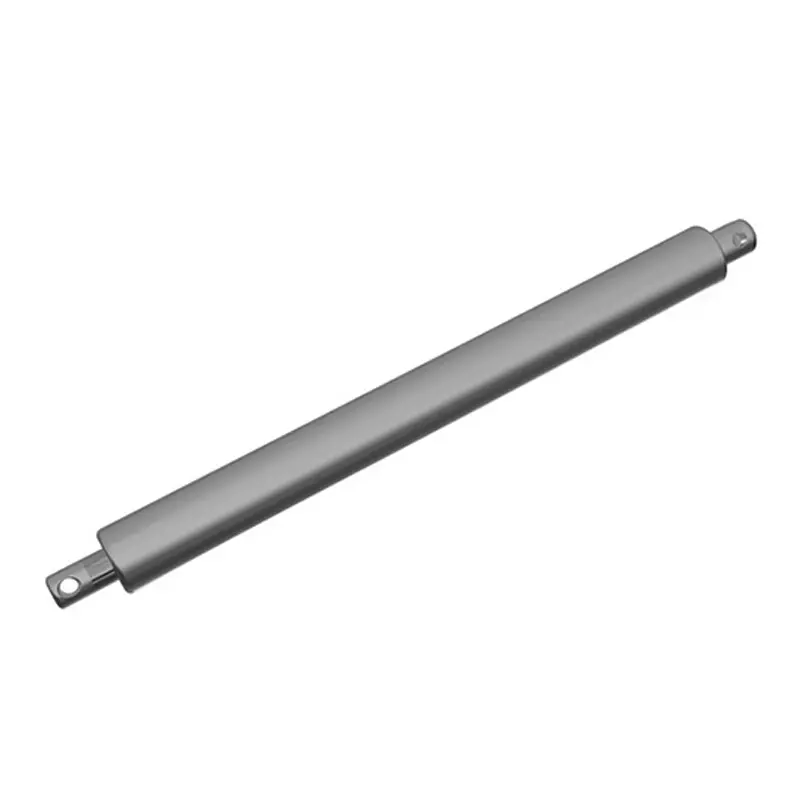

GRA-L20
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v
Max load: 120N
Max speed at no load: 19.0mm/s
Max stroke: 300MM
IP rate: IP54
Option: Silver/Black

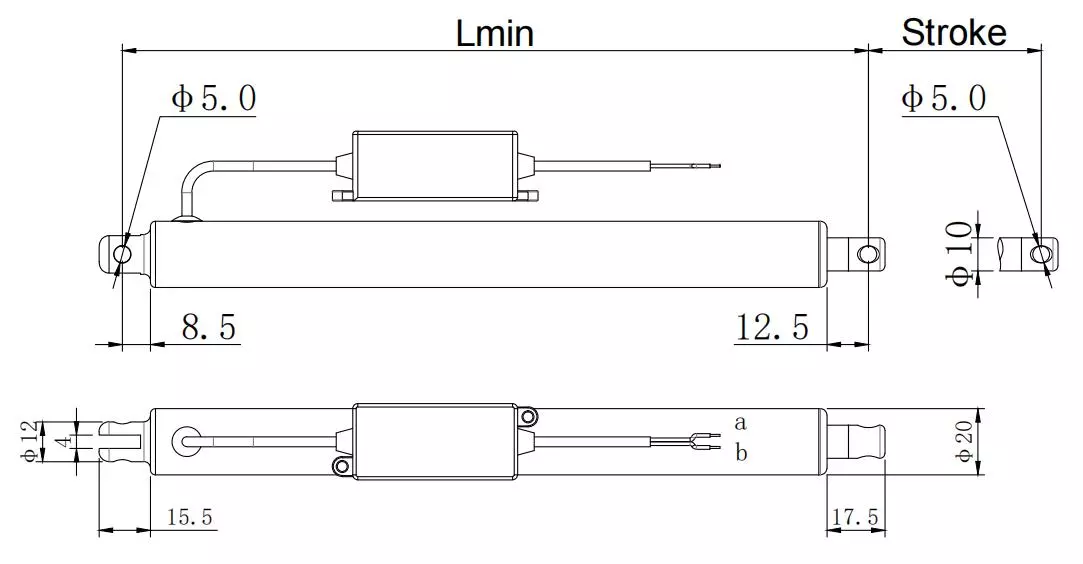

Product Details
|
（Stroke）
|
30-200
|
201-300
|
|
(Lmin)
|
S+125
|
S+155
|
Technical Specifications
| Code | Rated Load (N) |
Speed （mm/s） ±10% |
Electric current （A） | ||||
| 12V | 24V | ||||||
| fully loaded | fully loaded | fully loaded | fully loaded | fully loaded | fully loaded | ||
| A | 30 | 16.5 | 14.5 | 0.1 | 0.4 | 0.05 | 0.2 |
| B | 120 | 8.5 | 6.5 | 0.1 | 0.4 | 0.05 | 0.25 |
