GRA-D8S
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v/36v/48v
Max load: 7000N
Max speed at no load: 35.0mm/s
Max stroke: 1000MM
IP rate: IP65
Option: Hall sensor, Limit switch signal output
Product Details

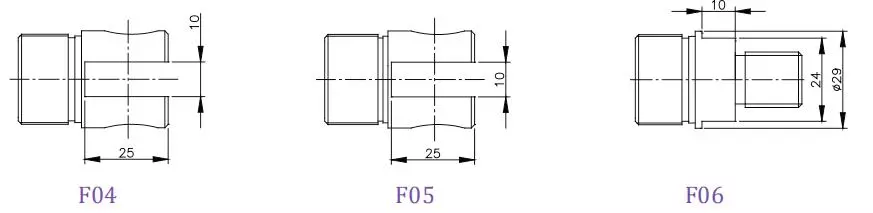

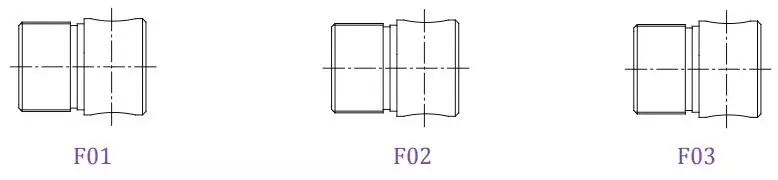

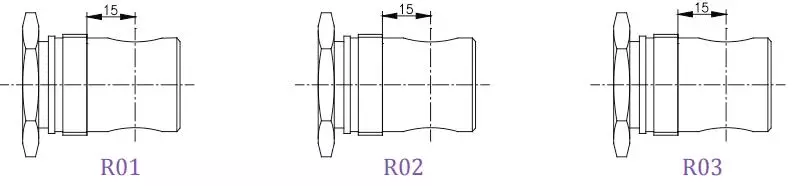

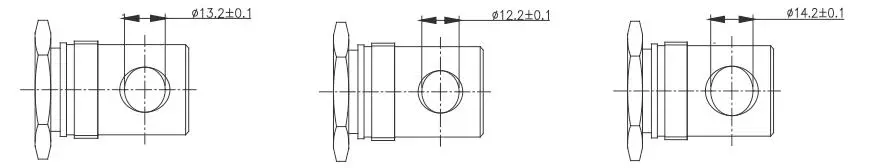

Front End Connectors 1-7
| Travel（S） |
50-400
|
401-600
|
601-1000
|
|

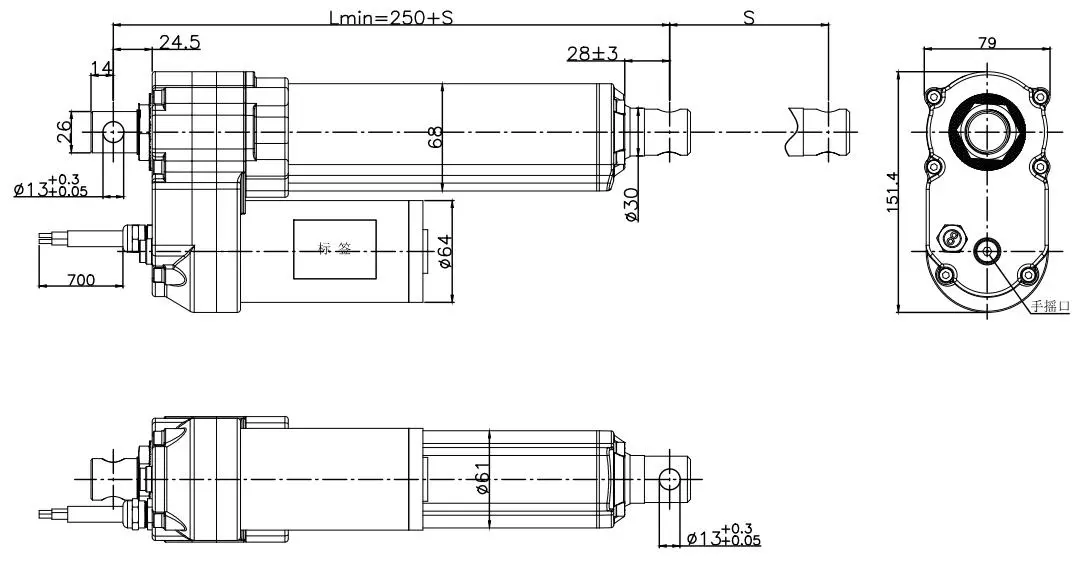

Minimum installation dimensions（L） |
S+200
|
S+250
|
S+300
|

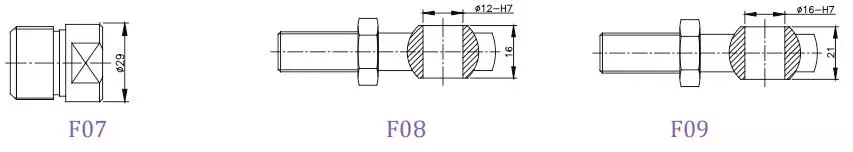

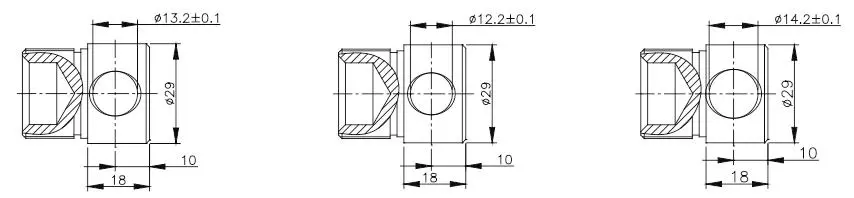

Front End Connectors 8-9
| Travel（S） |
50-400
|
401-600
|
601-1000 |
| Minimum installation dimensions（L） | S+230 | S+280 | S+330 |
Parameter Table
| Code | Rated Load | Static load | Speed | Maximum operating current | ||||
| MM/S | ||||||||
| (N) | (N) | No load | Full load | 12V | 24V | 12V | 24V | |
| A | 2000 | 4000 | 35 | 28.5 | 18.0 | 8.5 | 5.0 | 3.5 |
| B | 3000 | 5000 | 22 | 18 | 16.5 | 8.5 | 5.0 | 3.5 |
| C | 4000 | 7000 | 17 | 14 | 16.5 | 8.5 | 5.0 | 3.5 |
| D | 5000 | 8000 | 11 | 9.5 | 16.5 | 8 | 5.0 | 3.5 |
| E | 7000 | 10000 | 8.5 | 7 | 16.5 | 8 | 5.0 | 3.0 |
| F | 7000 | 10000 | 5.5 | 4 | 16.5 | 8 | 5.0 | 3.0 |
