GRA-D8
MOQ: 100 Pieces
Delivery time: 7 Day
Input invotage: 12v/24v/36v/48v
Max load: 8000N
Max speed at no load: 35.0mm/s
Max stroke: 900MM
IP rate: IP65
Option: Hall sensor, Potentiometer
Product Details

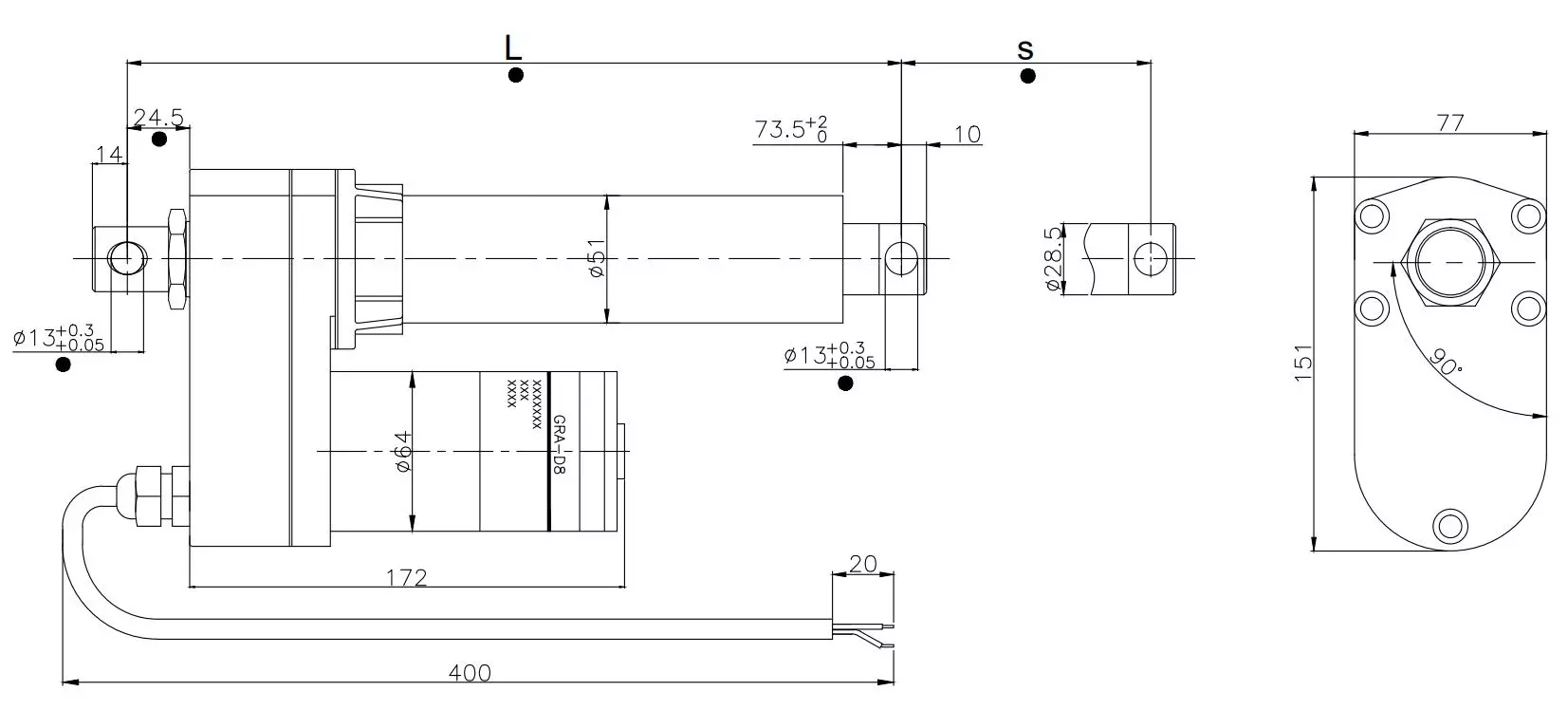

Built-in limit switch (supports potentiometer or Hall sensor signals):
| Lead screw type | Dimension(L) |
| Trapezoidal Screw | S+250(25≦S﹤400) |
| S+300(400≦S﹤610) | |
| Ball Screw | S+270(25≦S﹤400) |
| S+320(400≦S﹤610) |

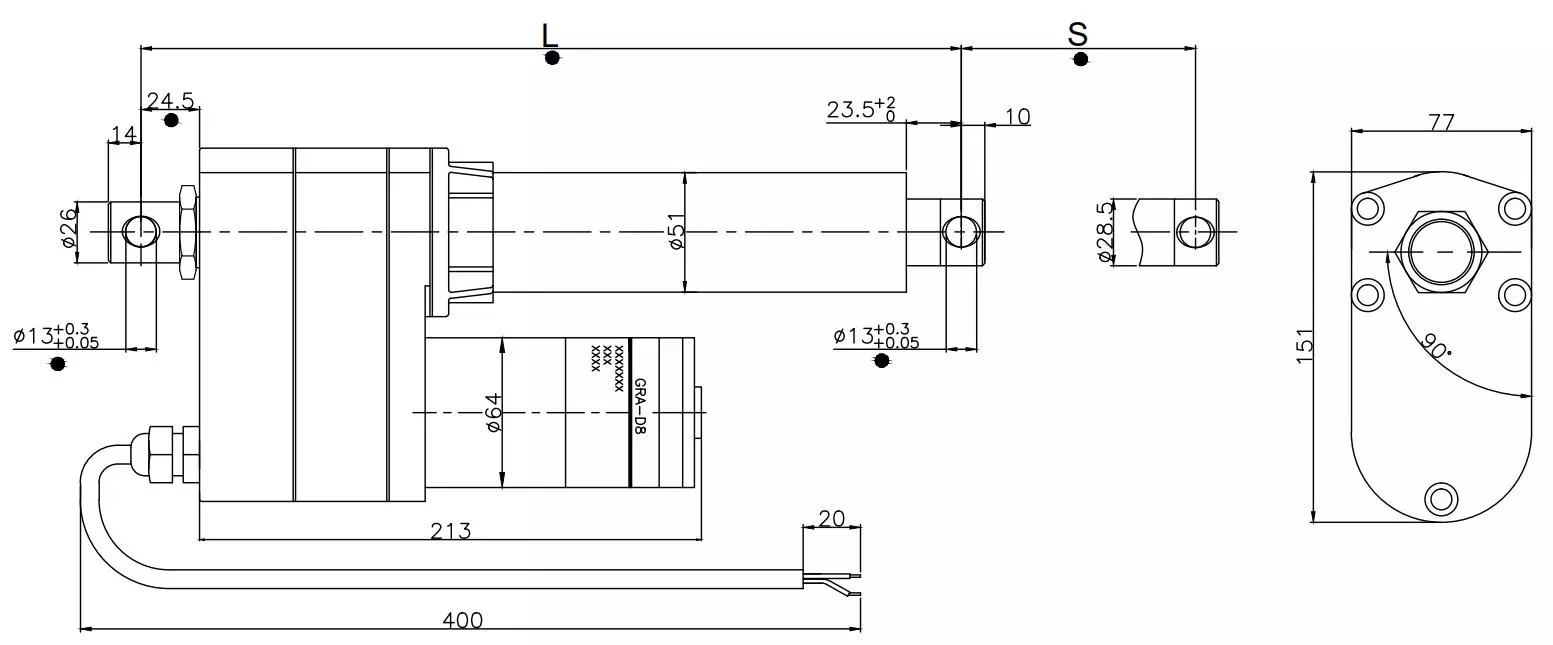

Without limit switch:
| Lead screw type | Dimension(L) |
| Trapezoidal Screw | S+200(25≦S﹤400) |
| S+250(400≦S﹤610) | |
| Ball Screw | S+215((25≦S﹤400) |
| S+265(400≦S﹤610) |
Relevant Parameters
| Code | Gear Ratio /Motor RPMV |
Maximum Load (N) Thrust & Tension |
Speed (mm/s) | Maximum operating current (A) | ||||
| No load | fully loaded | 12V | 24V | 36V | 48V | |||
| A | 5:1 4200 | 2000 | 35.0 | 30.0 | 17.0 | 8.5 | 5.0 | 3.0 |
| B | 10:1 4200 | 3000 | 22.0 | 18.5 | 17.0 | 8.5 | 5.0 | 3.0 |
| C | 20:1 4200 | 4000 | 17.2 | 14.5 | 17.0 | 9.0 | 5.0 | 3.0 |
| D | 30:1 4200 | 5000 | 12.0 | 9.5 | 17.0 | 9.0 | 5.0 | 3.0 |
| E | 40:1 4200 | 6000 | 8.5 | 7.0 | 18.0 | 9.0 | 5.0 | 3.6 |
| F | 40:1 4200 | 7000 | 5.5 | 4.0 | 18.0 | 9.0 | 5.0 | 3.6 |

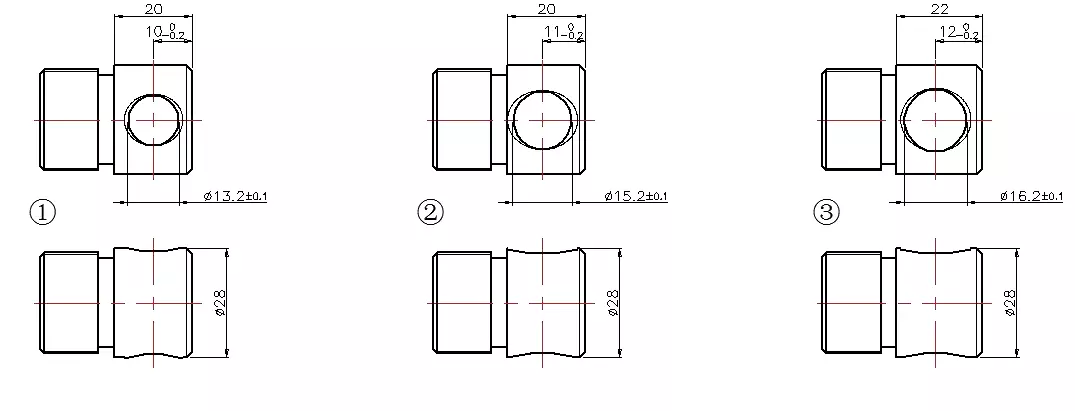

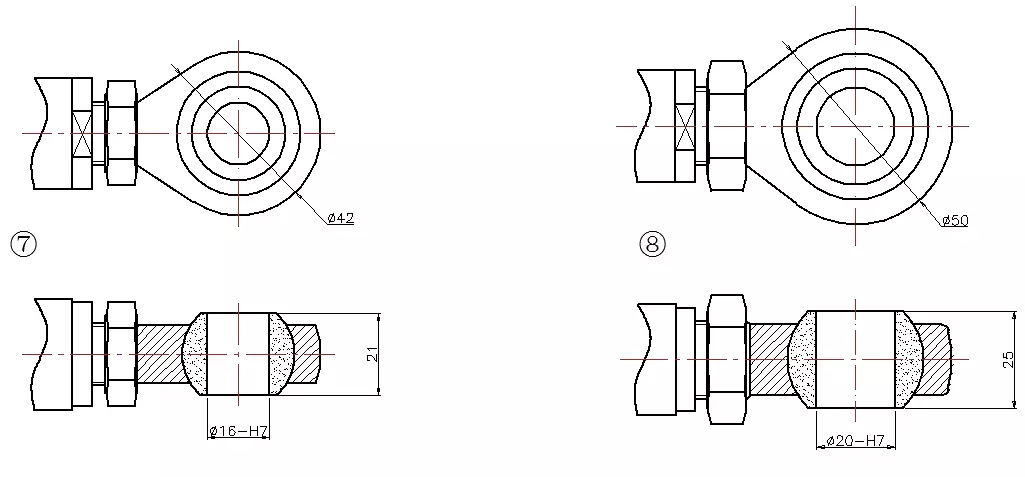

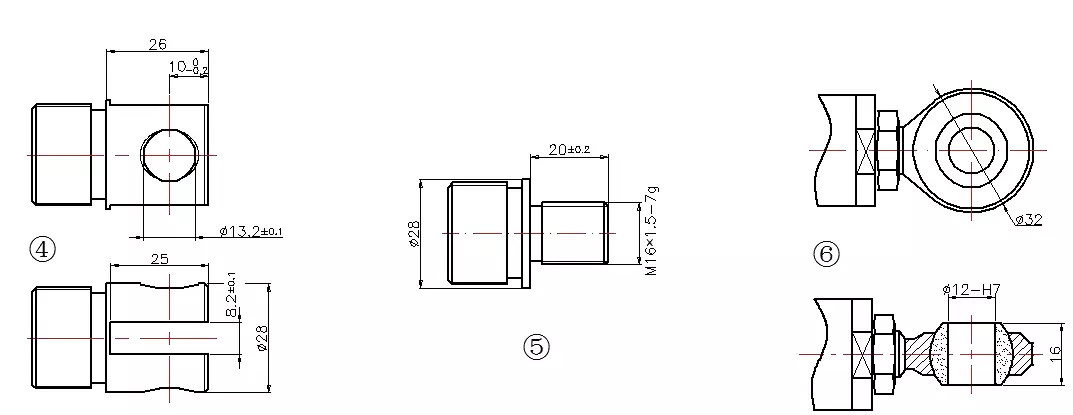

Front Connector Options

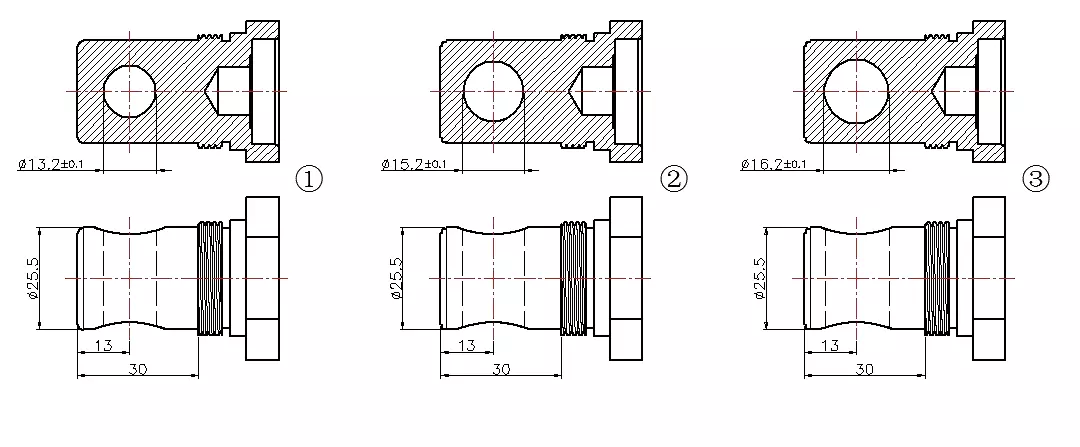

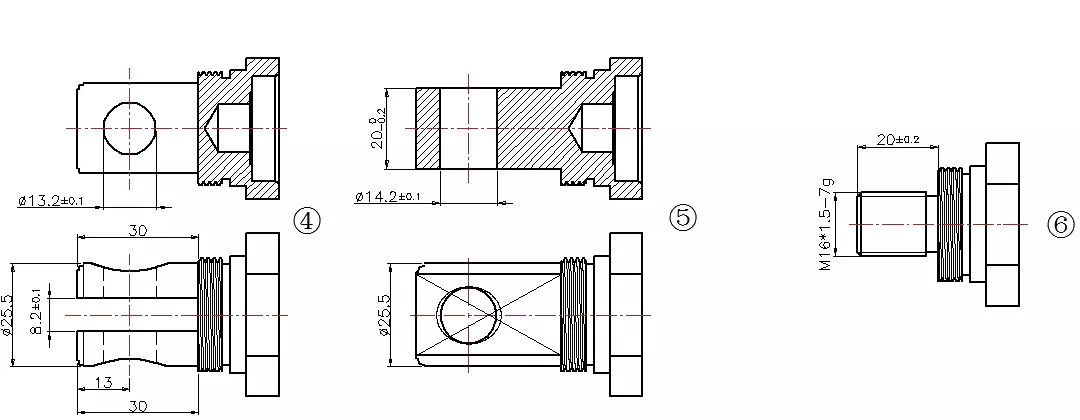

End Connector Options
